MCP (Model Context Protocol) defines how an AI agent talks to external tools. It is an easy way to extend Copilot with your own workflows.
For this post, I wrote an MCP server that runs locally (the example is in TypeScript, .NET support is already in preview, and I plan to write the next samples in C#). It compares two Git branches and helps run an early code review right inside GitHub Copilot.
Why it matters
- Add your own commands, rules, and data sources.
- Build AI-ready skills that employers already expect.
- Work from the familiar Copilot interface.
Clone the repo
GitHub - sigmade/Git-MCP-Server
The core Git operations of our MCP server are handled in the gitUtils.ts file
import { execSync } from 'child_process';
export interface MergeInfo {
sourceBranch: string;
targetBranch: string;
filesChanged: string[];
insertions: number;
deletions: number;
commits: number;
summary: string;
}
export class GitUtils {
static executeGit(command: string, repoPath: string): string {
try {
return execSync(command, { cwd: repoPath, encoding: 'utf8' }).toString().trim();
} catch (error) {
throw new Error(`Git error: ${(error as Error).message}`);
}
}
static getCurrentBranch(repoPath: string): string {
return this.executeGit('git branch --show-current', repoPath);
}
static getMainBranch(repoPath: string): string {
try {
this.executeGit('git show-ref --verify refs/heads/master', repoPath);
return 'master';
} catch {
return 'main';
}
}
static getMergeInfo(repoPath: string, fromBranch: string, toBranch: string): MergeInfo {
const filesOutput = this.executeGit(
`git diff --name-only ${fromBranch}..${toBranch}`,
repoPath
);
const filesChanged = filesOutput ? filesOutput.split('\n').filter(f => f.trim()) : [];
const statsOutput = this.executeGit(
`git diff --numstat ${fromBranch}..${toBranch}`,
repoPath
);
let insertions = 0;
let deletions = 0;
if (statsOutput) {
statsOutput.split('\n').forEach(line => {
const parts = line.split('\t');
if (parts.length >= 2) {
insertions += parseInt(parts[0]) || 0;
deletions += parseInt(parts[1]) || 0;
}
});
}
const commitsOutput = this.executeGit(
`git rev-list --count ${fromBranch}..${toBranch}`,
repoPath
);
const commits = parseInt(commitsOutput) || 0;
const summary = commits === 0
? 'No new commits for merge'
: `${commits} commits, ${filesChanged.length} files, +${insertions}/-${deletions} lines`;
return {
sourceBranch: fromBranch,
targetBranch: toBranch,
filesChanged,
insertions,
deletions,
commits,
summary,
};
}
static getQuickStats(repoPath: string, baseBranch: string, currentBranch: string) {
if (baseBranch === currentBranch) {
return {
message: 'Already on the base branch',
needsMerge: false,
};
}
try {
const ahead = this.executeGit(
`git rev-list --count ${baseBranch}..${currentBranch}`,
repoPath
);
const behind = this.executeGit(
`git rev-list --count ${currentBranch}..${baseBranch}`,
repoPath
);
const aheadCount = parseInt(ahead) || 0;
const behindCount = parseInt(behind) || 0;
let message = '';
if (aheadCount === 0 && behindCount === 0) {
message = 'Branches are synchronized';
} else if (aheadCount > 0 && behindCount === 0) {
message = `Ahead by ${aheadCount} commits`;
} else if (aheadCount === 0 && behindCount > 0) {
message = `Behind by ${behindCount} commits`;
} else {
message = `Ahead by ${aheadCount}, behind by ${behindCount} commits`;
}
return {
message,
aheadBy: aheadCount,
behindBy: behindCount,
needsMerge: aheadCount > 0 || behindCount > 0,
};
} catch (error) {
return {
message: 'Failed to determine status',
error: (error as Error).message,
};
}
}
static getFileDiff(repoPath: string, filename: string, fromBranch: string, toBranch: string): string {
try {
return this.executeGit(
`git diff ${fromBranch}..${toBranch} -- "${filename}"`,
repoPath
);
} catch (error) {
throw new Error(`Failed to get diff for file ${filename}: ${(error as Error).message}`);
}
}
}MCP server entry point and tool handlers in index.ts
import { Server } from '@modelcontextprotocol/sdk/server/index.js';
import { StdioServerTransport } from '@modelcontextprotocol/sdk/server/stdio.js';
import {
CallToolRequestSchema,
ErrorCode,
ListToolsRequestSchema,
McpError,
} from '@modelcontextprotocol/sdk/types.js';
import * as fs from 'fs';
import { GitUtils } from './gitUtils.js';
class SimpleMergeReviewMCP {
private server: Server;
constructor() {
this.server = new Server({
name: 'simple-merge-review',
version: '1.0.0',
});
this.setupToolHandlers();
}
private setupToolHandlers() {
this.server.setRequestHandler(ListToolsRequestSchema, async () => {
return {
tools: [
{
name: 'show_merge_diff',
description: 'Show changes between branches before merge',
inputSchema: {
type: 'object',
properties: {
repoPath: {
type: 'string',
description: 'Path to the git repository',
},
fromBranch: {
type: 'string',
description: 'Branch to merge from (default: main)',
default: 'main',
},
toBranch: {
type: 'string',
description: 'Branch to merge into (default: current)',
},
},
required: ['repoPath'],
},
},
{
name: 'quick_merge_summary',
description: 'Quick summary of changes for merge',
inputSchema: {
type: 'object',
properties: {
repoPath: {
type: 'string',
description: 'Path to the git repository',
},
branch: {
type: 'string',
description: 'Branch to analyze (default: current)',
},
},
required: ['repoPath'],
},
},
{
name: 'show_file_diff',
description: 'Show specific changes in a file between branches',
inputSchema: {
type: 'object',
properties: {
repoPath: {
type: 'string',
description: 'Path to the git repository',
},
filename: {
type: 'string',
description: 'Path to the file relative to the repository root',
},
fromBranch: {
type: 'string',
description: 'Branch to compare from (default: main/master)',
},
toBranch: {
type: 'string',
description: 'Branch to compare to (default: current)',
},
},
required: ['repoPath', 'filename'],
},
},
],
};
});
this.server.setRequestHandler(CallToolRequestSchema, async (request) => {
const { name, arguments: args } = request.params;
try {
switch (name) {
case 'show_merge_diff':
return await this.showMergeDiff(args);
case 'quick_merge_summary':
return await this.quickMergeSummary(args);
case 'show_file_diff':
return await this.showFileDiff(args);
default:
throw new McpError(ErrorCode.MethodNotFound, `Unknown tool: ${name}`);
}
} catch (error) {
throw new McpError(ErrorCode.InternalError, `Error: ${(error as Error).message}`);
}
});
}
private async showMergeDiff(args: any) {
const { repoPath, fromBranch = 'main', toBranch } = args;
if (!fs.existsSync(repoPath)) {
throw new Error(`Repository not found: ${repoPath}`);
}
const currentBranch = toBranch || GitUtils.getCurrentBranch(repoPath);
const mergeInfo = GitUtils.getMergeInfo(repoPath, fromBranch, currentBranch);
return {
content: [
{
type: 'text',
text: JSON.stringify(mergeInfo, null, 2),
},
],
};
}
private async quickMergeSummary(args: any) {
const { repoPath, branch } = args;
if (!fs.existsSync(repoPath)) {
throw new Error(`Repository not found: ${repoPath}`);
}
const currentBranch = branch || GitUtils.getCurrentBranch(repoPath);
const mainBranch = GitUtils.getMainBranch(repoPath);
// Simple summary of changes
const summary = {
currentBranch,
baseBranch: mainBranch,
...GitUtils.getQuickStats(repoPath, mainBranch, currentBranch),
};
return {
content: [
{
type: 'text',
text: JSON.stringify(summary, null, 2),
},
],
};
}
private async showFileDiff(args: any) {
const { repoPath, filename, fromBranch, toBranch } = args;
if (!fs.existsSync(repoPath)) {
throw new Error(`Repository not found: ${repoPath}`);
}
// Determine branches
const sourceBranch = fromBranch || GitUtils.getMainBranch(repoPath);
const targetBranch = toBranch || GitUtils.getCurrentBranch(repoPath);
// Get diff for the specific file
const diffOutput = GitUtils.getFileDiff(repoPath, filename, sourceBranch, targetBranch);
// Parse diff for more readable output
const parsedDiff = this.parseFileDiff(diffOutput);
return {
content: [
{
type: 'text',
text: JSON.stringify({
filename,
fromBranch: sourceBranch,
toBranch: targetBranch,
...parsedDiff,
rawDiff: diffOutput.split('\n').slice(0, 100), // Limit the number of lines
}, null, 2),
},
],
};
}
private parseFileDiff(diffOutput: string): { hasChanges: boolean; additions: string[]; deletions: string[]; summary: string } {
const lines = diffOutput.split('\n');
const additions: string[] = [];
const deletions: string[] = [];
let addedLines = 0;
let deletedLines = 0;
for (const line of lines) {
if (line.startsWith('+') && !line.startsWith('+++')) {
additions.push(line.substring(1)); // Remove the + sign
addedLines++;
} else if (line.startsWith('-') && !line.startsWith('---')) {
deletions.push(line.substring(1)); // Remove the - sign
deletedLines++;
}
}
const hasChanges = addedLines > 0 || deletedLines > 0;
const summary = hasChanges
? `+${addedLines} lines, -${deletedLines} lines`
: 'No changes in the file';
return {
hasChanges,
additions: additions.slice(0, 50), // Limit output
deletions: deletions.slice(0, 50),
summary,
};
}
async run() {
const transport = new StdioServerTransport();
await this.server.connect(transport);
console.error('Simple Merge Review MCP running');
}
}
// Start
const server = new SimpleMergeReviewMCP();
server.run().catch(console.error);Now we need to build the project and run it

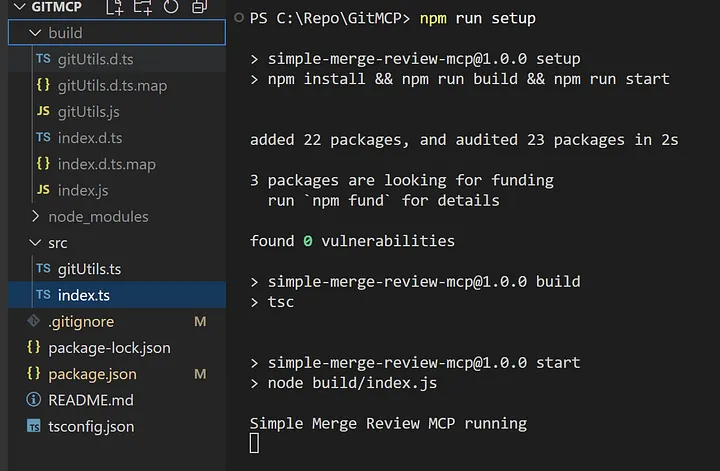

npm install
npm run build
npm run startThis creates build/index.js files

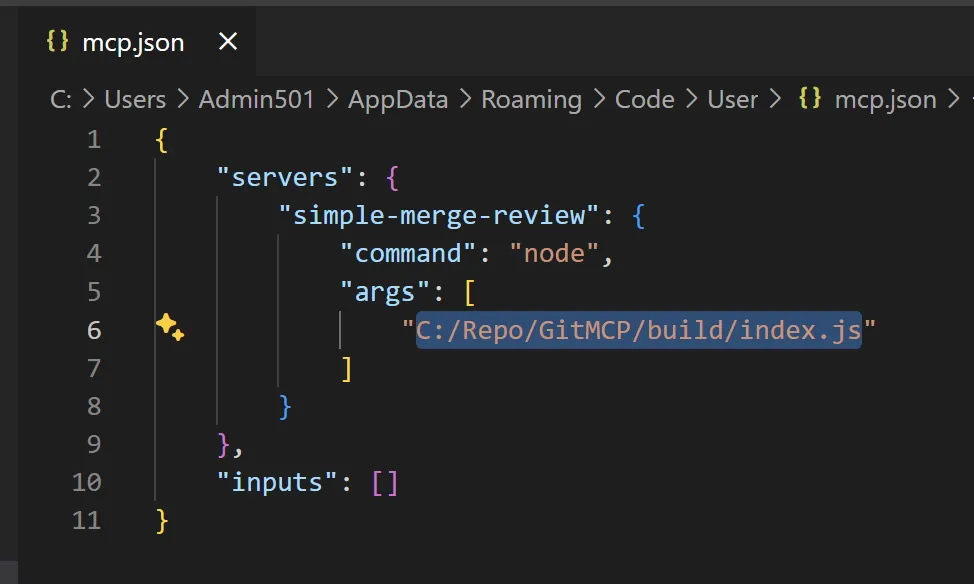

In C:\\Users\\YourUserName\\AppData\\Roaming\\Code\\User add mcp.json and point it to the server.
You need to specify the path to the index.js file
In VS Code, open a project with two branches, in my case, master and new-feature.

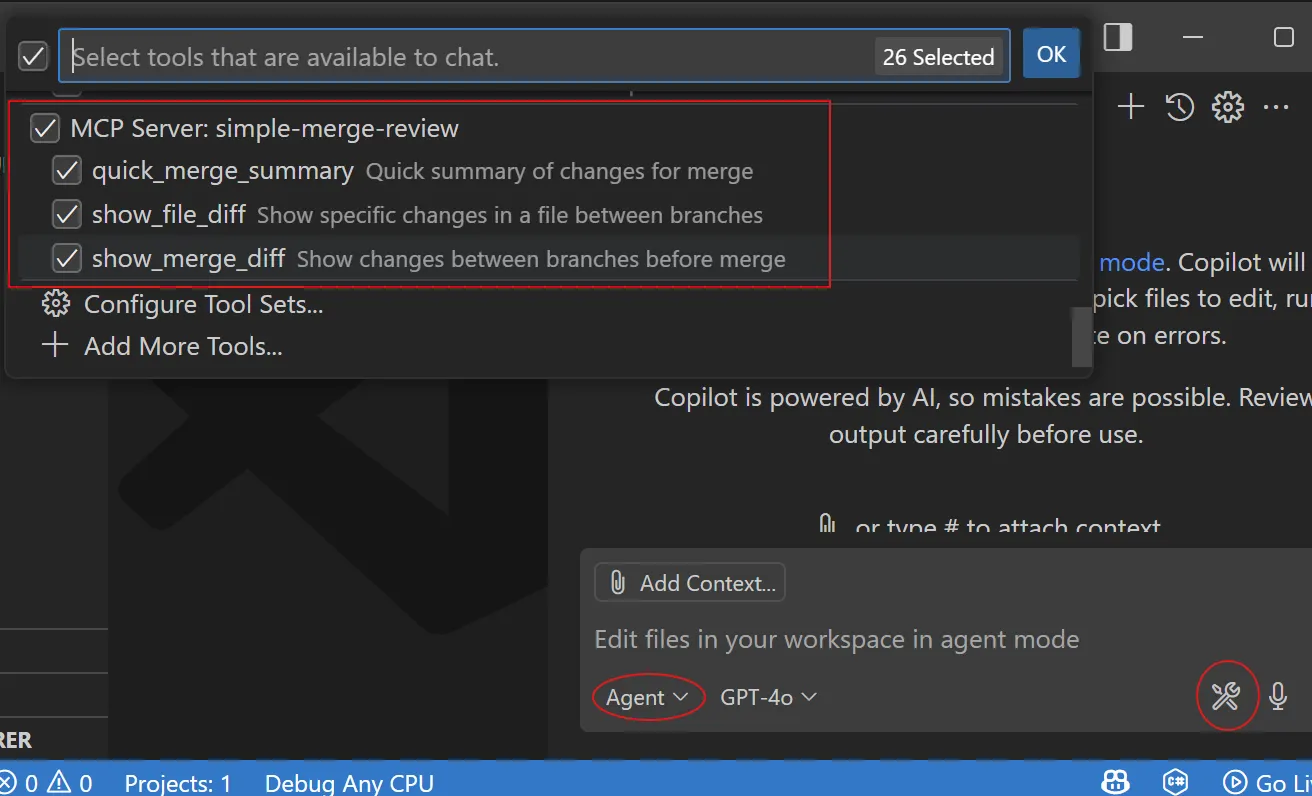

Next, make sure Copilot has detected your MCP. To do this, switch to Agent mode, click the Tools button, and find your MCP in the list
Send the prompt:

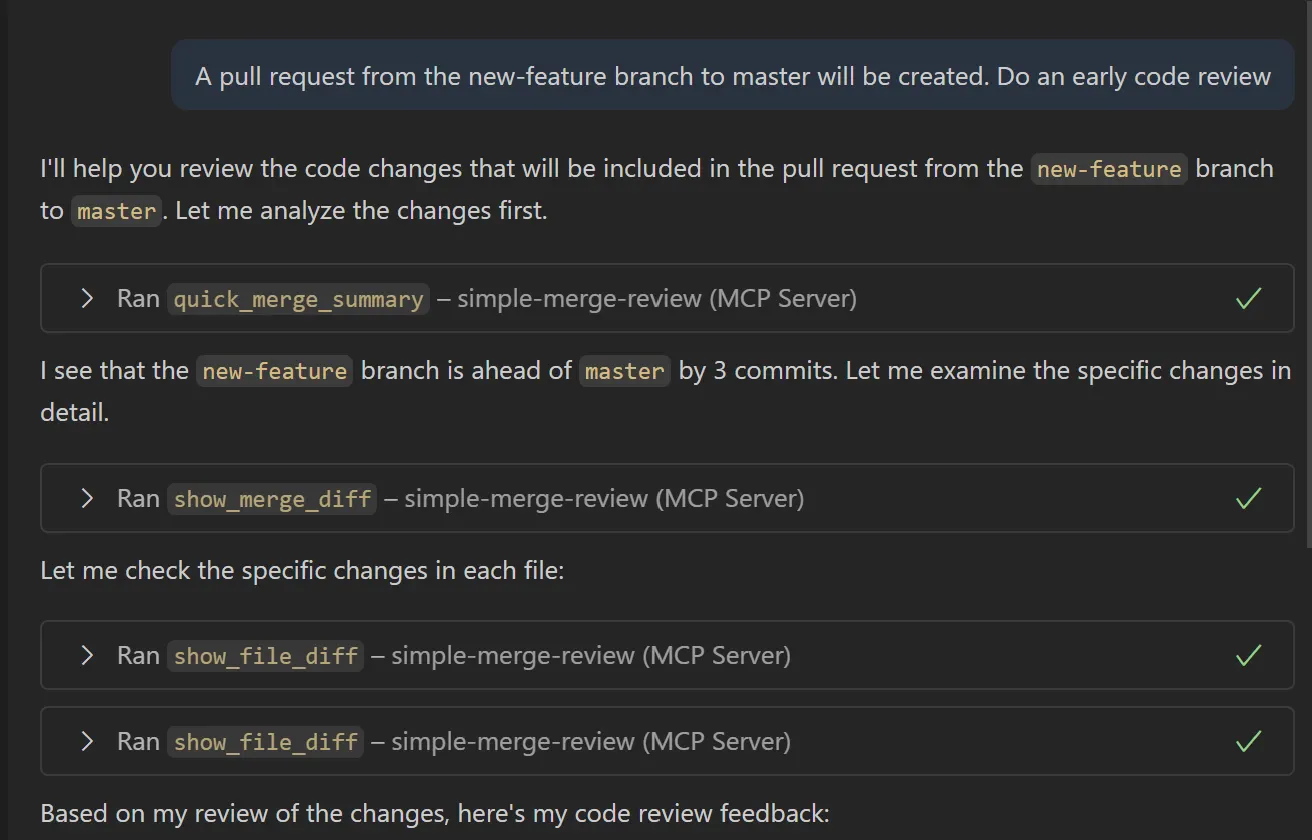

A PR from new-feature to master will be created. Do an early code reviewAs we can see, Copilot has recognized our MCP’s functions and displays the interaction log with them in the chat

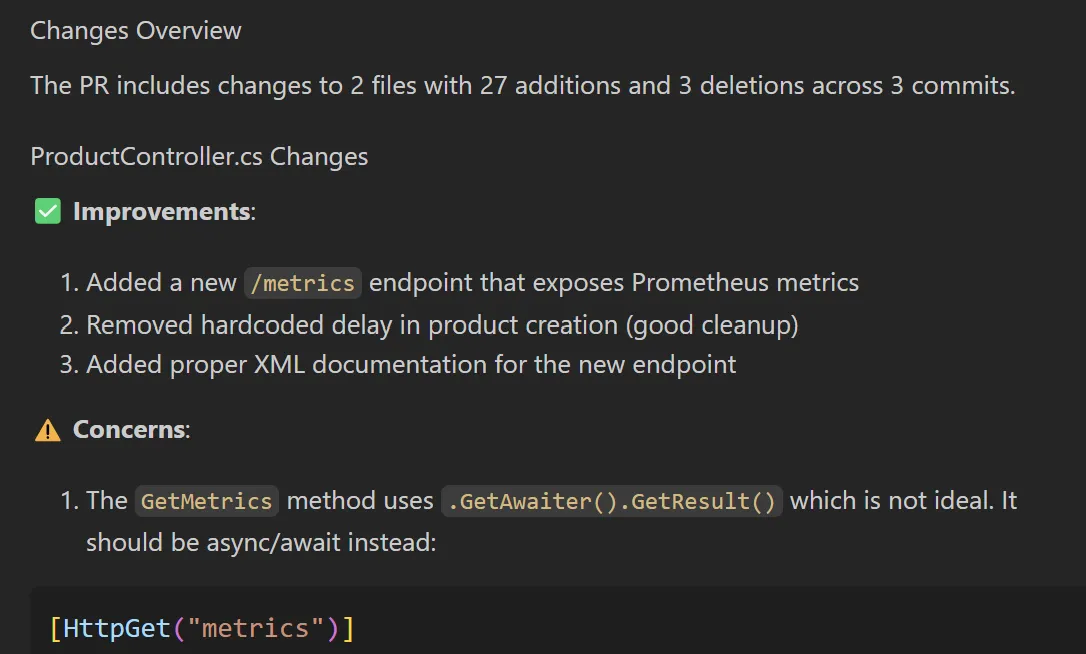

And finally, we get a review of our code changes
MCP lets any developer hook scripts, APIs, or internal services into the AI agent and use them inside Copilot to automate daily work.
